Blackstone Outfits Tack Trucks with Electric Heat

The move to electric-only

Although having both propane and electric heaters provided “the best of both worlds” in heating systems, Baughn says his company recently removed the propane tank and sealed up the associated tube. (The majority of distributor trucks are only equipped with burners for propane or diesel-fired heating.)

“Not only are you operating a portable truck carrying a highly combustible liquid, but every day you have to refill the fuel,” he says. “It’s not everywhere you go that you have LP available.”

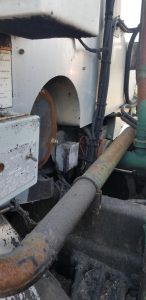

Using an electric heating system has its safety advantages, but it also aids productivity and serviceability, Baughn notes. The drywell-style electric heater can be removed from the truck tank without having to be drained.

To that end, one of the biggest advantages to using an electric-heating system is that the truck is “ready to go” in the morning without the need for someone to come in early and start heating the oil, Baughn points out.

“The crew is all able to come in together, and the oil has already been heated to the proper temperature when they arrive, as it is already plugged in from the night before,” he says. “We can keep the oil at a uniform heat all night long and over the weekend.”

Although using electric heat to bring emulsion up to temperature isn’t widely accepted by the contracting community, it has become vital to Blackstone Construction’s asphalt paving business.

“In an emulsion asphalt, oil and water are mixed together in a chemical process,” Baughn explains. “When the emulsified mix gets cold and reheated repeatedly, the oil and water go back to two separate items.”

Most tack trucks have an open flame heating a tube inside the tank with high heat in order to the emulsified mix up to the correct temperature. When the truck is brought back to the shop or yard at night, the mix gets cold — even though the tank is insulated. With lower-density heat produced through a drywell electric heating system, the heater can be safely run all night or over a weekend, and the emulsion temperature stays more uniform.

“I pull my truck up to the shop at night, and just plug it in,” Baughn says. “The oil stays at a [uniform] temperature. It lengthens the life of our oil. You don’t have to do a crazy, super-heating cycle with direct fire, where it can get so hot that emulsified asphalt will separate and break down very quickly.”

Baughn compares the damage caused by repeatedly heating and cooling oil to the way reheating the same food several times ruins it. “When you keep reheating food, it’s never as good as the original round of cooking,” Baughn says. “There is nothing worse than oil going from chilled to hot throughout several cycles. Overheating emulsions will make them unusable.”

The amount of oil that can be preserved is “kind of hit-or-miss” depending on the time of year, but Baughn says it’s not unusual to lose 5 percent of oil per year — especially when a truck isn’t used during winter months.

“The concept around our machine is that we actually bought a stationary asphalt tank and had a local guy build it and put electric heat on it,” Baughn says. “We have it set to 150 degrees Fahrenheit as the optimum temperature. It will only heat up to that and stay constant, instead of having a 1,000-degree [Fahrenheit] flame shooting heat, which gets red hot, to transmit to the oil.”

It’s not uncommon for asphalt contractors to purchase a tanker of oil at a time — about 5,000 to 6,000 gallons — but a distributor truck isn’t able to store it all. “Our truck only holds about 1,100 gallons, but now we can keep it uniformly heated,” Baughn points out, likening it to setting a temperature at home. “If I want [my house] at 68 degrees Fahrenheit, I can set the thermostat to stay at that temperature.” The same principal applies to keeping a tank of emulsion asphalt at a desired temperature.

Advantages on the job

The ability to keep a distributor truck at a constant temperature was critical to successfully completing a recent job last year for Blackstone Construction.

“We had a night job, and we wouldn’t have been able to tackle it without using this type of heat,” Baughn says. “We had to begin and end in the dark.”

The crew worked from 6 p.m. to 6 a.m. laying asphalt pavement on Highway 64 through Russellville, Arkansas. The job, completed in early Spring 2018, required a great deal of lighting equipment because the work was being done in the dark.

A generator typically would have been required to run lights for a nighttime paving job. However, Blackstone Construction’s distributor truck already has an electric heater with an onboard generator. “We were able to plug the light right into the truck and also keep the tack warm,” Baughn says.

Creating a new norm

As the carbon footprint, especially in larger cities, becomes more closely monitored, Baughn says the need for cleaner energy will grow and so will wider acceptance and use of electric heat within the contractor community.

“Contractors don’t always like change when they have something that works,” he says, explaining why electric heat isn’t considered mainstream — yet. “They are also afraid of getting stuck with equipment that may not be generally considered ‘the norm’ in the industry.”

However, as advantages are recognized and the need for electric heat increases, Baughn predicts electric will continue to become more relevant — that it’s just a matter of time before this type of heat is a “norm” on distributor trucks.

“We used to use propane and diesel to heat our screeds,” he says. “Now about all you can buy is an electric heated screed. Anyone who has owned one, won’t go back. It heats to the proper temperature with uniform heat without any cold or hot spots. It’s all about consistency.”
